XENIX Proximity Time Recorder model XTR-P50 is a powerful time recorder device that uses proximity card technology for the recording of employee attendance records. It has a huge storage capacity that can store up to 50,000 attendance transactions. And it can be linked to multiple XTR-P50 Time Recorder (Max. 16 Units) to handle environment that has many employees or has more than one entry/exit point. It is suitable for factory / manufacturer environment.
| Hardware Specifications: | ||
| Dimension | : | 57D x 230W x 188H (mm) |
| Processor | : | 16 Bits MCU |
| RAM | : | 1M Byte SRAM |
| Flash/EPROM | : | 128K Byte Flash |
| Real Time Clock | : | Onboard real-time RTC with backup power. |
| Display | : | 2x20 LCD Dot Matrix with Backlit |
| Supervisory Circuit | : | Internal and External Watchdog Design. |
| Backup Power | : | Nicad 3.6Vdc Onboard Rechargeable Backup Battery. |
| Operating Frequency | : | 24Mhz |
| Operating Temperature | : | 0-65 Degree Celsius |
| Operating Humidity | : | 0% - 90% Non-Condensing |
| Buzzer | : | Onboard 12Vdc Buzzer |
| Output | : | Onboard 1 Relay Output |
| EMF Protection | : | Onboard back surge current protection on every communication port. |
| Max Transaction | : | 50,000 Event Transaction Storage. |
| Card Format | : | ABA Magnetic Format |
| Event Support | : | Max. 12 events selection via keypad. |
| Baud Rate | : | 9,600 bps for PC communication. |
| Communication | : | RS485 Communication |
| Event Trigger | : | 7x30 sets of event trigger relay output. |
| Operation Voltage | : | 13.8Vdc @ 500mA |
| Housing | : | Metal Casing with coated epoxy. |
| CAM Lock | : | Built in tabular CAM Lock. |

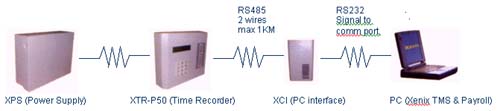

| XCI | : Signal Converter (RS486 to RS232) for XTR-P50 to PC Communication. |
| XPS | : 13.8Vdc 3A switching power supply with battery charger. |
| XBAT | : 7AH Seal-lead rechargeable battery. |
| XPROX | : Proximity blank card (1.9mm Thick) |
