S-series - Control up to 8 doors
S-series controller is the standard product of CASTLE door access system. It caters for all users, ranging from the low to the high end users. The S-Series controller is able to control 2, 4 and upto 8 doors.
Built-in with "Duress Alarm".

Features:

Model Available (Code) : CAS-2S
Door Per Controller
: 2 doors.
Model Available (Code) : CAS-4S
Door Per Controller
: 4 doors.
Model Available (Code) : CAS-8S
Door Per Controller
: 8 doors.
Time Set : 100 time set with 3 intervals each.
Time Zone : 100 time zone (7days + 2 holidays/ per time zone)
Accessibility : 100 user door accessibility consists of time zone , reader and expiry date.
Card Storage : 5000 cards storage.
Transactions : 2500 events transactions.
Anti-Passback : Multi-door Anti-Passback

Software can be use:

  1. SmardGuardStandard,

  2. SmartGuardPro,

  3. SmartGuardPro Remote,

  4. SmartGuard Client/ Server

  5. CAMS.

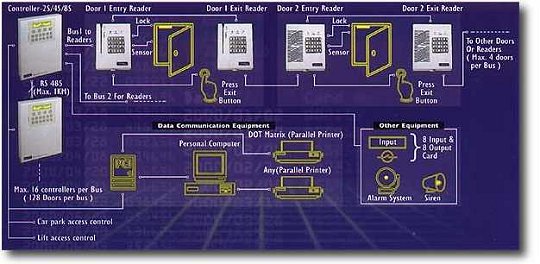

S-series Specification & Configuration:

Technical Specification:
Microprocessor Model : Motorola 68HC11MCU.
Operating Frequency : 8Mhz
EPROM/ Flash : 64KBytes/ 128K Bytes
RAM : 128Kbytes
Watchdog : 1 internal and 1 external
Backup Battery : 3.6v onboard rechargeable backup battery
Operating Temperature : 0 - 65C
Baud Rate (PC to controller) : 2400
Baud Rate (Controller to reader) : 9600
Stop Rate : 8
Dimension : 248H x 185W x 42D mm
