There are three types of mode available: Card Only, Card with Pin number or Pin Number only. It can be programmed and is user friendly.
For added security purposes,
Castle Knight with alarm features is available. It comes with a
'Lock-Out' features where the card will be disable after 3 times invalid
card pin number.
|
Model (Code) |
: | KSP-NDT |
|
Description |
: | Proximity reader with magnetic signal format. |
|
Format |
: | Proximity (Magnetic Signal) |
|
Model (Code) |
: | KSP-NDH |
|
Description |
: | Proximity HID (Wiegand 26bits) card reader. |
|
Format |
: | Proximity(26 bits) |
| Model (Code) | : | KSP-MSN |
|
Description |
: | Contact-less Smartcard Reader (MifareŽ card serial number) |
|
Format |
: | Wiegand 26 bits |
| Card Storage | : | 992 Cards user (6 digits card number) |
| Casing | : | ABS casing |
| Pin Sets | : | 2 sets PIN number for Pin Mode Access(4 digits) |
| LCD Display | : | YES |
| Operation Mode | : | Card Only, Card+Pin (Changeable PIN number) or PIN Only |
| Lock Out Features | : | YES, after 3 times invalid Pin number unit will card disable. |
| Dual Mode* | : | Optional* |
 |
||
|
Model (Code) |
: | KSP-992 |
|
Format |
: | Proximity (Magnetic Signal) |
|
Model (Code) |
: | KSM-992 |
|
Format |
: | Magnetic readers ABA Format ISO Standard Track 2 |
| Casing | : | Metal casing |
| Card Storage | : | 992 Cards user (6 digits card number) |
| Pin Sets | : | 2 sets PIN number for Pin Mode Access(4 digits) |
| LCD Display | : | NO |
| Operation Mode | : | Card Only, Card+Pin (Changeable PIN number) or PIN Only |
| Lock Out Features | : | YES, after 3 times invalid Pin number unit will card disable. |
| Dual Mode | : | Optional*. |
* Dual Mode = This reader can be switch to Standalone or Network Mode. In Network Mode, the reader able to communicate with controller with only setting the jumper.

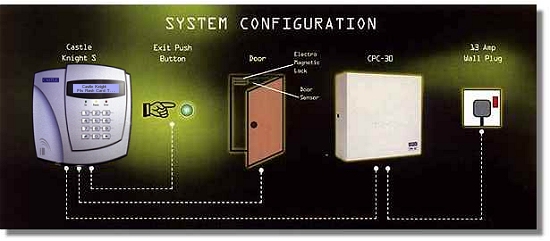

| Castle Knight Configuration: |
|
| Technical Specification: |
Model |
KSP-NDH/ T, MSN |
KSP, KSM, KSB |
||
| Microprocessor Model | : | MC68HHC908GP32 | MC68HC705C8A | |
| Operating Frequency | : | 8.00Mhz | 4.00Mhz | |
| Operating Temperature | : | 0 - 65'C | 0 - 65'C | |
| EEPROM/ Flash | : | 64kbits | 64kbits | |
| Card Read Distance | : | 75 - 110mm | 30 - 75mm | |
| LCD Features | : | 16 Character x 2 Rows | - | |
| Dimension (H x W x D) | : | 170 x 165 x 35mm | 135 x 92 x 32mm | |
| Weight | : | 0.6kg | 1kg |
