SP-Series controller is used
in the Car Park area. It is able to support Multi Antipassback
using a single controller.
The system can also be linked up for communication through network (TCP/IP),
by using the SmartGuard Pro Remote software.
Features:
| Model
Available (Code) |
: |
CAS-2SP |
|
Door Per Controller
|
: |
2 gates. |
| Model Available
(Code) |
: |
CAS-4SP |
|
Door Per Controller
|
: |
4 gates. |
| Model Available
(Code) |
: |
CAS-8SP |
|
Door Per Controller
|
: |
8 gates. |
| Time Set
|
: |
100 time set with 3
intervals each. |
| Time Zone
|
: |
100 time zone (7days
+ 2 holidays/ per time zone) |
|
Accessbility |
: |
100
user door accessbility consists of time zone , reader and expiry
date. |
| Card Storage |
: |
5000 cards
storage. |
| Transactions
|
: |
2500 events
transactions. |
| Anti-Passback |
: |
Multi-door Anti-Passback
|
Compatible Software:
-
SmardGuard Standard,
-
SmartGuard Pro,
-
SmartGuardPro
Remote,
-
SmartGuard Client/
Server
-
CAMS.
|
Configuration |
|
*Recommendation: 1 power supply for each reader interface inside
Goose Neck

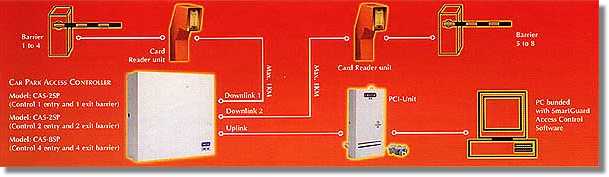

System Configuration
|
|
Microprocessor Model |
: |
Motorola 68HC11MCU. |
| Operating
Frequency |
: |
8Mhz |
| EPROM/ Flash
|
: |
64KBytes/ 128K Bytes |
| RAM
|
: |
128Kbytes |
| Watchdog
|
: |
1 internal and 1
external |
| Backup Battery |
: |
3.6v onboard
rechargeable backup battery |
| Operating
Temperature |
: |
0 - 65C |
| Baud Rate (PC
to controller) |
: |
2400 |
| Baud Rate (Controller
to reader) |
: |
9600 |
| Stop Rate |
: |
8 |
| Dimension
|
: |
248H x 185W x 42D mm |
|
