| S2100 Controller :: Two Door Control Panel |
Integrated Access
Controller
S2100, reinvention of conventional access controller. The S2100 access
control panel is a very affordable and user friendly system. It has been
designed to cater for all your needs from card expiry date checking, access
level, time zone, antipassback and many more to help you supervise and
manage your office doors efficiently, effectively and professionally.
S2100 employs a compact and reliable design concept. This modular approach
allows you to minimize the cost of ownership.
Hassle free operation, installation, maintenance offer a convincing
perspective. S2100 reduces length user training with easy to learn, and easy
to install. The reliability of the system minimize user time spend.
|
|

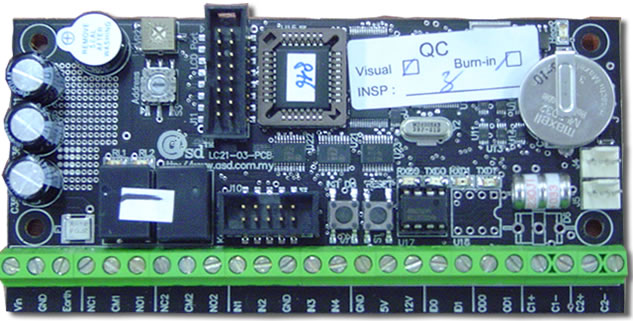

| S2100 Controller |
 |

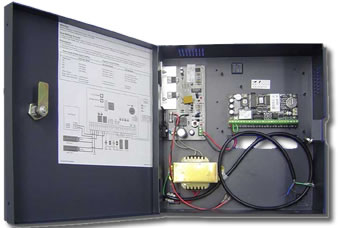

| Cabinet and Enclosure |
Main Features
o System Memory
o –128KB flash memory
o –128KB SRAM
o Support 2 Door Reader (1 or 2 doors)
o –Support all card format ( Wiegand
26,32,34,35,37, HID ICLASS, ABA Track II, Mi-Fare, o o
and etc )
o –Support Integrated / Matrix keypad reader
o 2 Configurable Communication Ports
o –2 RS485 Port / 2 RS232 Port / 1 Ethernet Port (
optional )
o –Baud rate 9.6Kbps for serial / 10Mbps for
Ethernet ( optional )
o –LED indicator for all data transmission
o –all COM ports are protected by surge arrestor
o Real Time Clock with 3.6V / 60mAh backup battery
o Hardware supervised by external watchdog
o Hardware protect by resetable fuse
o Hardware reset and database initialize tact switch
o Support 20x2 dot matrix LCD
o Adjustable on board buzzer
o Firmware
o –1500 card user and 3000 event storage
o –maximum 255 time zone
o –maximum 255 time set
o –maximum 255 access level
o –maximum 60 holidays setting
o –maximum 99 sec door open time
o –maximum 99 sec door release time
o –maximum 99 sec disarm delay time
o –maximum 99 sec arm delay time
o –maximum 99 min siren ON and OFF time
o –3 set of facility code
o –3 set of 6 digit door pin numbers
o –Auto lock release control by time zone
o –Antipassback by time zone
o –Exit button control by time zone
o –Support card expiration setting
o –Support multiple access mode ( pin only,
card+pin, card only )
o –Support access mode by time zone
o –Support controller programming mode
o –Support data download and upload between PC and
controller
o –Come with 12VDC power supply unit
Technical Specification
|
