EntryPass's new controller S.2000 is designed to cater for the future expansion and it is a new generation controller. Packed with even more powerful features, capabilities, and most importantly, saving installation time and easy commissioning. One of the hallmark that included in this controller is the supervised alarm input/output points.

Strong enough to manage up to 2000 users and store 3000 events at the controller memory, S.2000 is pretty suitable in most of the application. If user found that they required even more memory, the board is upgrade-able to 20,000 users and 30,000 events memory.

The S.2000 controller is configurable as 1 door or 2 doors mode. While catering for the cost factor, S.2000 controller does not compromise from the security aspect by maintaining secure installation.

Not only serving as door access controller, S.2000 controller is designed to serve as car park access controller as well. It can manage of 1 entry and 1 exit barrier access. Card expired checking feature is definitely included. When the car park is full, an indicator output is provided to tell the car park operator the situation.

The S.2000 controller is built with 4 supervised alarm input zones and 1 alarm output zone. This enable the user to performed the alarm monitoring function by using a single controller.

SB-593 Satellite Expansion Board simply takes flexibility and expandability one step further.

All S.2000 controller are configured by using EntryPass Systems' acclaimed EntryPass Solution Access Control System Software. LCD and keypad is also applicable as the alternate configuration tool.

EntryPass system is a user-friendly access control system, perfect for managing access control applications from 1 to 128 doors, at a single site or multiple sites through TCP/IP network.

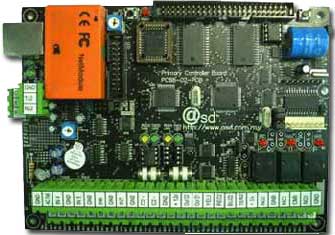

S2000 Controller

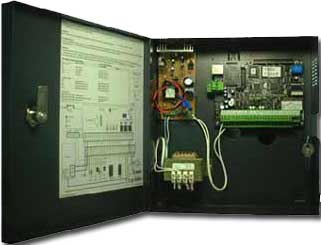

Cabinet and Enclosure

The System Architecture Provides:

o 100% Intelligence at each Door
o Expandable 1 or 2 Door(s)-at-a-time
o RS-232 Serial Port for Direct Connection to PC, reliable RS-485 for more
o than a controller, or Connection via TCP/IP for Remote Multiple Site
o Management
o Upgrade-able to maximum of 20,000 User Capacity and 30,000 events.
o Support multiple reader technologies or any Standard Wiegand
o Compatible Reader Technology
o 4 supervised alarm input points and 1 alarm output point for alarm
o monitoring
o onboard buzzer with adjustable volume level
o No DIP switch setting for the addressing
o AC or DC power supply indicator

 Main Features

o System Memory
o – 128KB flash memory
o – 1MB RAM ( expandable up to 16MB )
o Support 2 Local Door Reader
o – Configurable to IN and OUT reader or 2 IN reader ( Two Door Mode )
o – Support reader’s LED and Buzzer indication
o – Support all card format ( Wiegand 26,32,34,35,37 , HID ICLASS, Magnetic ABA Track II, Mifare, and etc )
o – Support Integrated / Matrix keypad reader
o Miscellaneous Inputs and Outputs
o – 4 digital Inputs
o – 4 Supervised Inputs
o –3 Relay Outputs
o 2 Configurable Communication Ports
o – 2 RS485 Port / 2 RS232 Port / 1 Ethernet Port ( optional )
o – Baud rate 9.6Kbps for serial / 10Mbps for Ethernet ( optional )
o – LED indicator for all data transmission
o – all COM ports are protected by surge arrestor
o Programmer able controller IP address ( no more hardware address
o switch setting )
o Real Time Clock with 3.6V / 60mAh backup battery
o Hardware supervised by external watchdog
o Hardware protect by resetable fuse
o Hardware reset and database initialize tact switch
o Support 20x2 dot matrix LCD
o Adjustable on board buzzer
o Firmware
o – 2000 card user and 3000 event storage ( expandable )
o – maximum 255 time zone
o – maximum 255 time set
o – maximum 255 access level
o – maximum 60 holidays setting
o – maximum 99 sec door open time
o – maximum 99 sec door release time
o – maximum 99 sec disarm delay time
o – maximum 99 sec arm delay time
o – maximum 99 min siren ON and OFF time
o – 3 set of facility code
o – 3 set of 6 digit door pin numbers
o – Auto lock release control by time zone
o – Antipassback by time zone
o – Exit button control by time zone
o – Alarm mode control by time zone
o – Support General Purpose output (Time control)
o – Support card expiration setting
o – Support card installation at reader
o – Support multiple access mode ( pin only, card+pin, card only )
o – Support access mode by time zone
o – Support controller programming mode
o – Support data download and upload between PC and controller
o – Optional Features support SMS, modem dial-up, and telephone dialer
