EntryPass Evolution is a powerful multi-users and multi-workstations access control system that provides features required in the most demanding applications.

As it can be used in many applications, from door access, elevator hall call, elevator car call, car park access, visitor management, online guard tour, emergency roll call, alarm monitoring to time attendance reporting.

The software have been designed from user point of view. The software is friendly yet maintaining all its complex functionality that is required in the industry. The "Express Set Up" wizard provides the fastest way to commissioning the system.

The EntryPass Evolution packed with network connectivity function to support existing TCP/IP network connection to remote locations. This eliminates high monthly fees for dial-up and dedicated phone lines.

The EntryPass Evolution is able to handle up to 512 readers/doors, 1024 alarm monitoring zones and 256 alarm output points

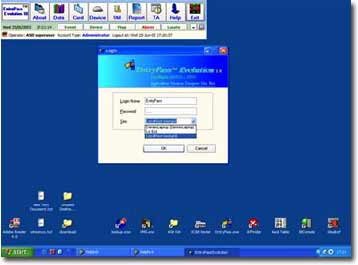

Main Screen

Multiform Display

Main Features

System
o Client/Server application
o Multi-user login and multi-workstation environment
o RDBMS database engine
o Support redundancy server
o Transaction server for third parties linkage
o Multi open form display
o Audit trail logging and auto transaction event logging
o Audible sound on alarm events transaction
o Auto time synchronization from PC time to controller
o Build in house keeping system tool (Backup and restore)
o Emergency roll-call function

Communication
o Serial and LAN (TCP/IP) communication port
o Support up to 16 network lines
o Support up to 16 controller per network line

System Capabilities
o Support up to maximum of 512 doors reader
o Support up to maximum of 512 doors
o Support up to maximum of 1024 supervised alarm input points
o Support up to maximum of 256 alarm relay output points

Time Attendance
o Multiple shift assignment
o Support overtime and work hour calculation
o Time attendance record editing
o User definable working hour setting
o Support day, overnight and cross over attendance calculation
o Auto time attendance posting and automatic late in emailing notification
o Time attendance report with graph analysis

Card holders
o 6 digits card user personal pin
o Definable Administrator/Master/Visitor/Guard-Tour type
o 30 user definable data fields
o Card holder tracking and card personal locator
o Door alarm arming card (used with keypad)
o Door confinement card (used with keypad)

Reporting
o Comprehensive operational event listing
o Card holder daily, monthly time attendance summary listing
o Report personalization (Company name and report logo)

Controller and Door setting
o Single/Dual doors/Car park/Multi-doors configuration
o 256 time sets, 256 time zone, 256 access level setting
o 366 days holiday set
o Configurable input and output point setting
o Support fire alarm signal
o Support various card format (Wiegand 26,32,34,35,36,37,44)
o Pin only, Card only, Card + pin, Buddy card mode
o Soft/Hard/Time antipassback function
o Alarm processing
o Automatic time reset on antipassback flag and card lock flag
o Access limits support (limit the number of entrance)

Floor plan
o Interactive floor map
o Floor plan breakthrough on alarm
o Auto rotate/manual floor map display
o Thumbnail list of floor map

Software operation
o Multi site selection login
o User access password protection
o User access day and time management
o Auto logout function (Definable time setting)
o User failed login lockout (after N counts)

 Software system

The EntryPass Evolution integrated access control and alarm monitoring system delivers maximum protection, versatility, simple operation and cost efficiency. EntryPass Evolution incorporates that the most advance technologies available, including modern object-oriented software, and Microsoft's multitasking, multithreading 32-bits Windows 2000/XP operating system. Solid technology and an intuitive graphical user interface combine to make EntryPass Evolution the most powerful and yet to easiest to use integrated security management system on the market.

Visitor Management

EntryPass Evolution comes with a powerful and yet an easy to use visitor management module. It is a dependable and cost effective visitor management application that enables an organization to manage and track visitors throughout its facilities.

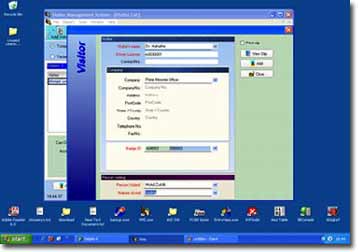

Visitor Management

 Time Attendance Module

The build in time attendance report engine can easily extract card user access control transaction to automate the tracking of card user attendance records such as total working hours, overtime, lunch hours, late in, late out, early in, early out, lunch in, lunch out, incomplete swipe or absentee with few mouse click operation. The EntryPass Evolution supports auto late in emailing notification.

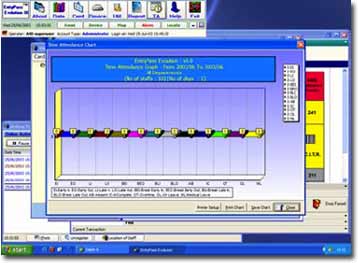

Multiform Attendance Graph List

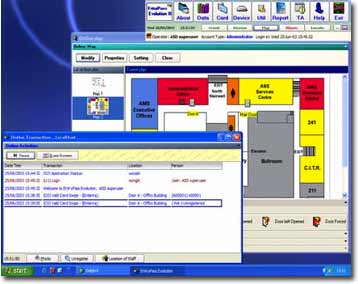

Interactive Floor Plan Display

EntryPass Evolution can import and display high-resolution graphics created on CAD type systems allowing you to design a graphic-based system that system user can operate with minimal training. Door, alarm points objects can be inserted to the floor map for real-time control of system devices with a mouse click.

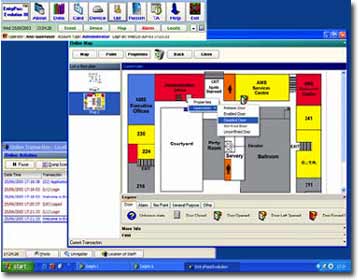

Graphical Floor Plan

Redundancy Backup Server

The EntryPass Evolution supports a fault tolerant server and redundant database architecture to enable the system to continue to functioning if the primary database server fails, in the event of a server failure. EntryPass Evolution will allow the system user to switch over the primary domain server to the secondary backup server with a single mouse click.

Automatic SMS and E-mail

EntryPass Evolution integrates with SMS messaging and E-mailing to be transmitted automatically when alarm occurs. For example, when alarm zone is triggered or door is forced open. The notification can be SMS or email message. The SMS message is send via GSM module to a the personal in-charge in the field, and an e-mail message can be sent to an administrator in the another location.

Multi-Applications

The EntryPass Evolution is an integrated security system. It allows system user to have a single solution to manage and control various application area.

o Visitor management
o Alarm monitoring
o Online Guard tour
o Time Attendance
o Redundant Server
o Car park access
o Elevator control
o Emergency roll-call
o Door access
o Card holder tracking
o ETC.
